Parameter | Value | ||||
Model | ML2420 | ML2430 | ML2440 | ML4830 | ML4860 |
System Voltage | 12/24V | 12V/24V/36V/48V | |||
No-load loss | 0.7W-1.2W | ||||
Battery Voltage | 9V-35V | 9V-70V | |||
Max.Solar Input Voltage | 100V(25ºC) 90V(-25ºC) | 150V(25ºC) 145V(-25ºC) | |||
MPPT Range | Battery Voltage+2V~75V | Battery Voltage+2V~120V | |||
Rated Charging Current | 20A | 30A | 40A | 30A | 60A |
Rated Load Current | 20A | ||||
Max. Capacitive Load Capacity | 10000uF | ||||
Max PV Input Power | 520W | 800W | 1100W | 1600W | 3200W |
Conversion efficiency | ≤98% | ||||
MPPT Tracking efficiency | >99% | ||||
Temp Compensation Coefficient | -3mv/ºC/2V | ||||
Working Temperature | -35ºC~+45ºC | ||||
Waterproof Level | IP32 | ||||
Weight | 1.4Kg | 2Kg | 2Kg | 2.3Kg | 3.6Kg |
Communication Port | RS232 | RS485,RS232 | |||
Altitude | ≤3000m | ||||

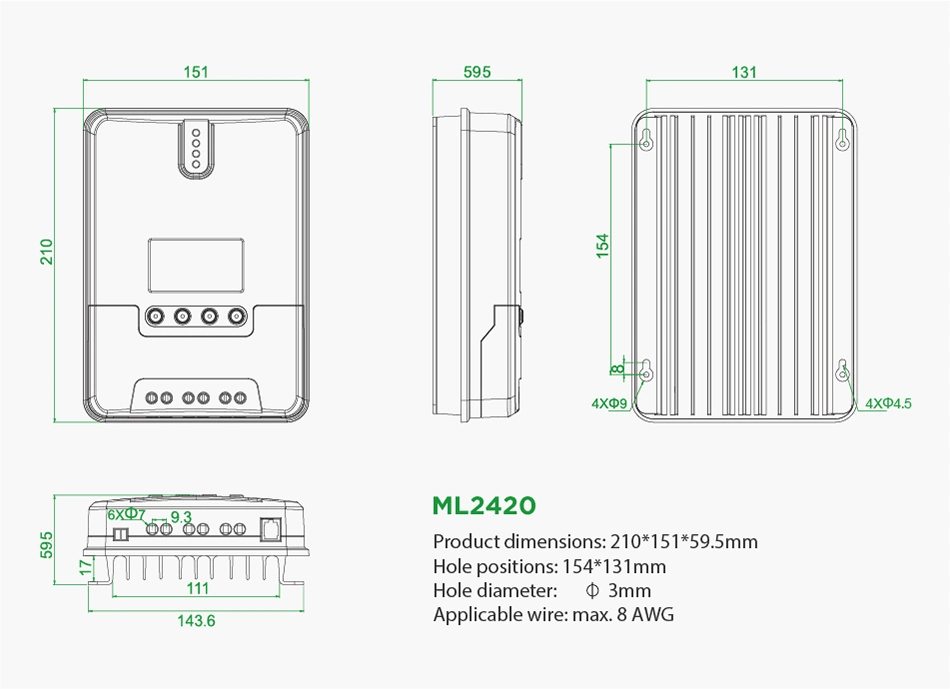

Product Dimensions (mm) | 210*151*59.5 | 238*173*72.5 | 226*182*81 | 285*205*93 |
