Solar cable is the interconnection cable used in photovoltaic power generation. A solar cable interconnects solar panels and other electrical components of a photovoltaic system. Solar cables are designed to be UV resistant and weather resistant. It can be used within a large temperature range and are generally laid outside.

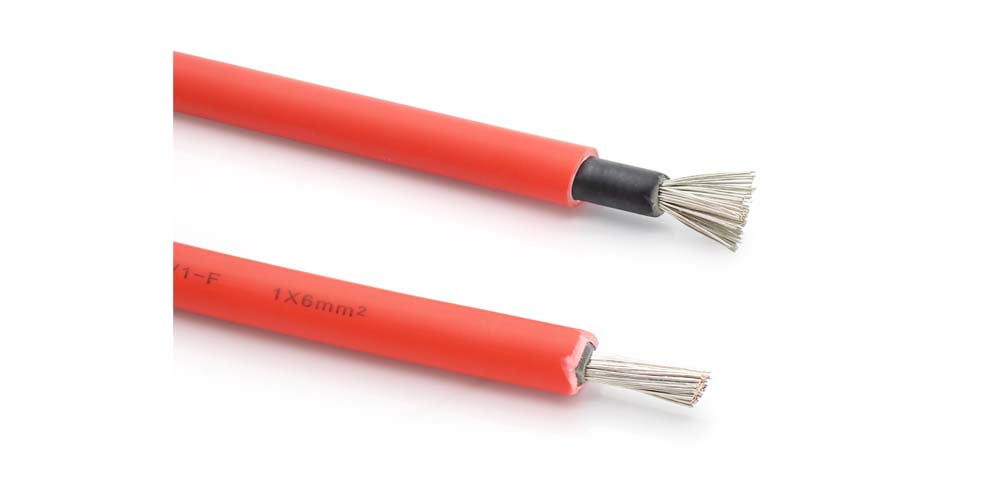

★ Single core solar cable
Cross section (mm2) | Conductor Construction | Outer (mm) | Resistance Max. | Current Carring Capacity |
1*1.5 | 30/0.25 | 4.90 | 13.30 | 30 |
1*2.5 | 50/0.25 | 5.45 | 7.89 | 41 |
1*4 | 56/0.3 | 6.10 | 4.75 | 50 |
1*6 | 84/0.3 | 7.20 | 3.39 | 70 |
1*10 | 142/0.3 | 9.00 | 1.95 | 98 |
1*16 | 228/0.3 | 10.20 | 1.24 | 132 |
1*25 | 361/0.3 | 12.00 | 0.795 | 176 |
1*35 | 525/0.3 | 13.8 | 0.565 | 218 |
1*50 | 720/0.3 | 14.8 | 0.393 | 280 |
1*70 | 988/0.3 | 16.9 | 0.277 | 350 |
1*95 | 1349/0.3 | 18.7 | 0.21 | 410 |
1*120 | 1691/0.3 | 20.7 | 0.164 | 480 |
★ Twin/Dual core solar cable
Cross section (mm2) | Conductor Construction | Outer (mm) | Resistance Max. | Current Carring Capacity |
2 x 1.5 | 30/0.25 | 8.3 ± 0.2 | 13.30 | 30 |
2 x 2.5 | 50/0.25 | 9.2 ± 0.2 | 7.98 | 41 |
2 x 4 | 56/0.3 | 12.0 ± 0.2 | 4.75 | 50 |
2 x 6 | 84/0.3 | 13.5 ± 0.2 | 3.39 | 70 |
2 x 10 | 142/0.3 | 17.6 ± 0.2 | 1.95 | 98 |
2 x 16 | 228/0.3 | 19.8 ± 0.2 | 1.24 | 132 |
